Miru System Architecture Diagram

This page contains the current high-level architecture diagram for miru-web.

• Open the standalone diagram: /files/architecture/miru-web-architecture.html

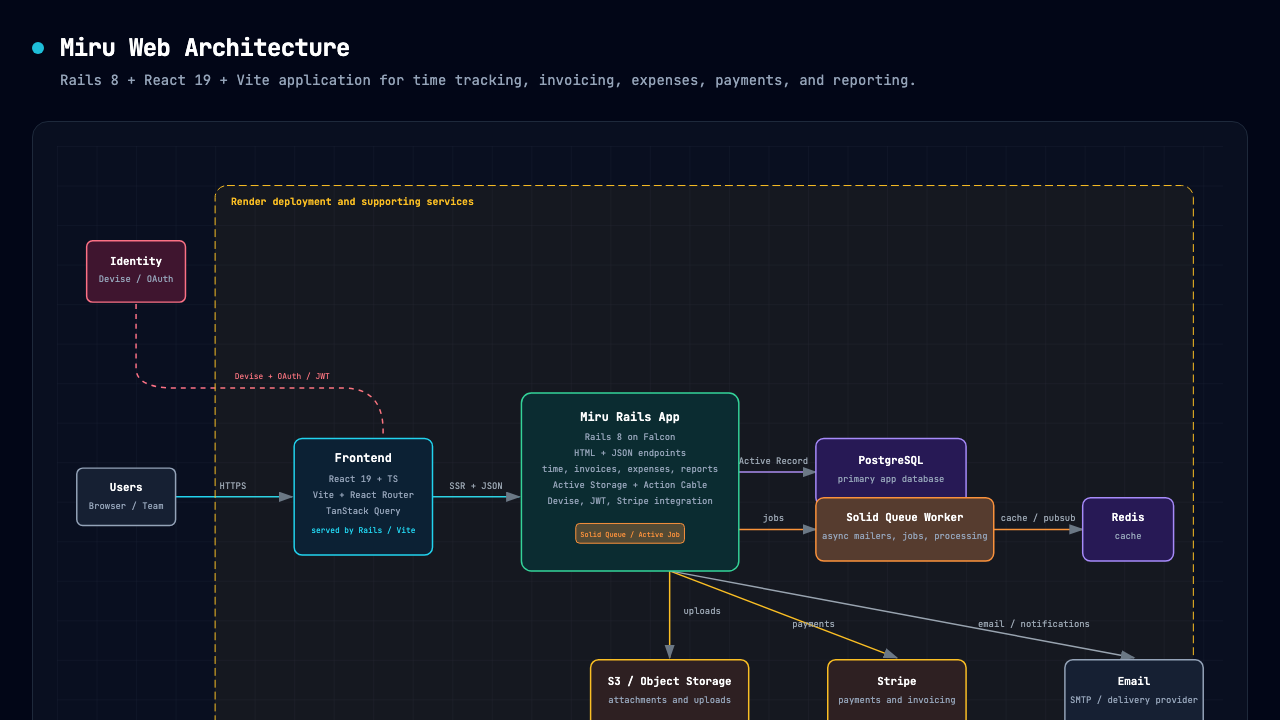

• Preview image:

Scope

The diagram reflects the observed repository stack and deployment shape:

• Rails backend and React plus Vite frontend
• PostgreSQL primary data store
• Solid Queue background processing
• Redis cache and messaging support
• Active Storage object uploads
• Stripe payment integration
• Email delivery path

Regeneration Notes

The diagram was generated from the installed architecture-diagram skill and then tailored to the current miru-web codebase and runtime layout.
